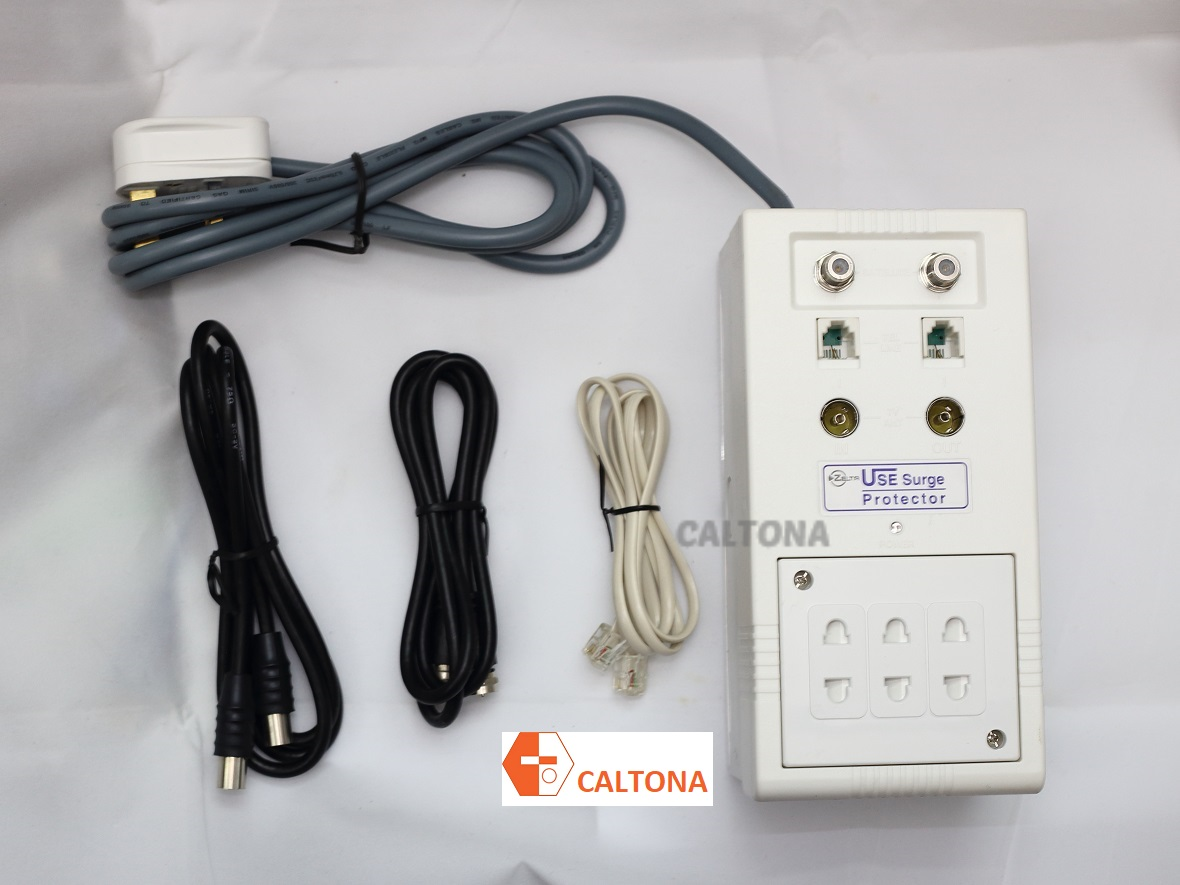

USE SURGE PROTECTOR 4IN1 TVS1125-5PS, POWER LINE, TEL-LINE, TV-ANTENNA, SATELLITE

Brand: Use
Country: Made in Malaysia

Power line protection
Operating voltage: AC230V
Clamping voltage: 430 ±10%
Max Current: 5a / 1000w
When severe Struck: Open Circuit

RF (TV atenna) Line protection
Bandwidth: VHF/UHF
Insertion Signal Loss: Negligible
Breakdown Voltage: 80v ±15%
Clamping voltage to ground (0voltage): 150V ±10%
When severe Struck: Open Circuit
* For the outdoor antenna with an external RF booster ,the RF booster power supply unit MUST BE plugged into other ac power socket. The RF Booster unit is not under protection

Telephone Line protection
Breakdown Voltage: 200v ± 15%
Clamping Voltage to Ground (0 voltage): 200v ± 15%
When Severe Struck: Open Circuit
Low impedance & Fast response time.
Ideal protection for single pair regular analogue or digital telephone line.

Satellite Dish (LNB) Line Protection
Clamping Voltage Common to Ground (0 voltage): Negligible Loss
When Severe Struck: Open Circuit
